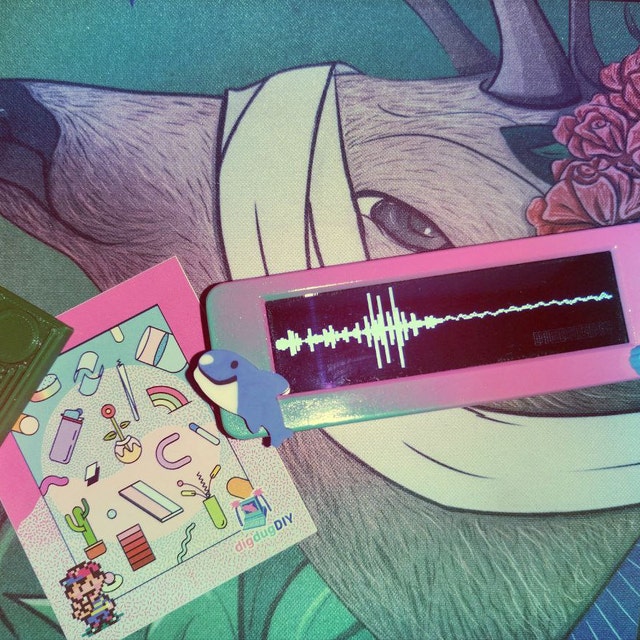

SOUNDWAVE III - OLED Audio Spectrum Analyzer with Waveform Visualizer & Vu Meter

SOUNDWAVE III >> OLED Audio Spectrum Analyzer + Waveform Visualizer & Vu Meter // glitch multi fx music vaporwave aesthetic led lights

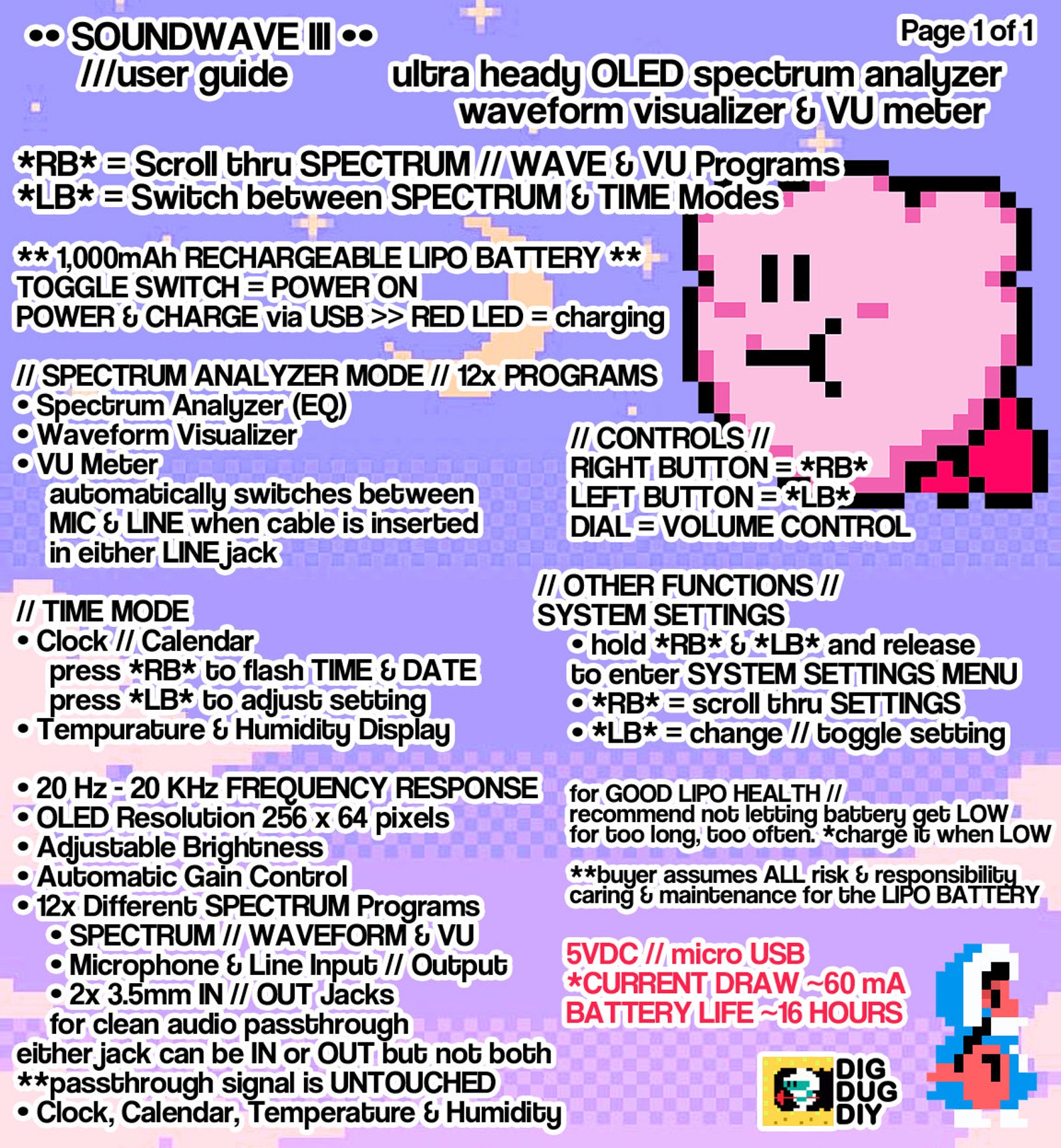

// SOUNDWAVE III //
ultra heady OLED Audio Spectrum Analyzer
Waveform Visualizer & VU Meter

**BUILT IN 1,000mAh LIPO BATTERY
100% PORTABLE & RECHARGEABLE
BATTERY LIFE ~16 HOURS

POWER & CHARGE via USB
Toggle Switch = POWER ON via BATTERY
RED LED = charging

• 20 Hz - 20 KHz FREQUENCY RESPONSE
• OLED Resolution 256 x 64 pixels
• Adjustable Brightness
• Automatic Gain Control
• 12x Different SPECTRUM Programs
• SPECTRUM // WAVEFORM & VU
• Microphone & Line Input // Output
• Custom Engraved Screen Protector

• 2x 3.5mm IN // OUT Jacks
for clean audio passthrough
either jack can be IN or OUT but not both
**passthrough signal is 100% UNTOUCHED

• Clock, Calendar, Temperature & Humidity

// SPECTRUM ANALYZER MODE // 12x PROGRAMS
• Spectrum Analyzer (EQ)
• Waveform Visualizer
• VU Meter
automatically switches between
MIC & LINE when cable is inserted
in either LINE jack

// TIME MODE
• Clock // Calendar
press *RB* to flash TIME & DATE
press *LB* to adjust setting
• Tempurature & Humidity Display

// CONTROLS //
RIGHT BUTTON = *RB*
LEFT BUTTON = *LB*
DIAL = VOLUME CONTROL

*RB* = Scroll thru SPECTRUM // WAVE & VU Programs
*LB* = Switch between SPECTRUM & TIME Modes

// OTHER FUNCTIONS //
SYSTEM SETTINGS
• hold *RB* & *LB* and release
to enter SYSTEM SETTINGS MENU
• *RB* = scroll thru SETTINGS
• *LB* = change // toggle setting

5VDC // USB ** microUSB
*CURRENT DRAW ~60 mA

size approx. 4.125" x 1.3" x 0.75"

▼ retro futures ● lofi lifestyles ▼ http://digdugDIY.com ◀
